Центральное устройство AONT-100


The AONT-100 is fsully FSAN (ITU-T G.984) compliant with a 1.244 Gb/s upstream and 2.488 Gb/s downstream, Class B+ GPON system. In addition it supports downstream AES (128-bit key) and downstream and upstream FEC RS(255,239).

Feature Summary


*   Built-in Triplexer for Video RF-Overlay
*   Indoor wall or table mount
*   Four 10/100Base-T Ethernet RJ-45 Ports
*   2 analog 2-wire RJ-11 (POTS) VoIP SIP voice ports, G.711 codec, 5 REN per port
*   CLASS 5 Voice Services
*   Lifeline POTS when used with the AONT-100-UPS
*   Built-in L2 switch , 256 MAC addresses and 16 VLAN VIDs
*   MAC address limiting
*   Customer VLAN tagged (802.1p), priority tagged and untagged frames
*   ToS/DSCP to 802.1pmapping
*   IGMPv1/v2/v3 snooping and filtering
*   Ethernet UNI output shaping, and upstream scheduling
*   GPON “dying gasp” power loss indication

Скачать AONT-100.pdf

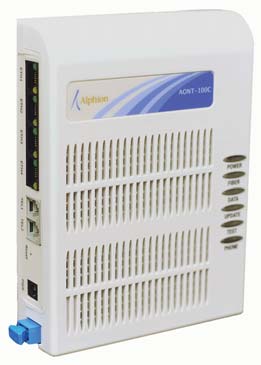

Центральное устройство AONT-100C


The AONT-100C is fully FSAN (ITU-T G.984) compliant with a 1.244 Gb/s upstream and 2.488 Gb/s downstream, Class B+ GPON system. In addition, it supports downstream AES (128-bit key) and downstream and upstream FEC RS(255,239).

Feature Summary


*   Small-form factor
*   Indoor wall or table mount
*   Four 10/100Base-T Ethernet RJ-45 Ports
*   2 analog 2-wire RJ-11 (POTS) VoIP SIP voice ports, G.711 codec, 5 REN per port
*   CLASS Voice Services
*   Lifeline POTS when used with the AONT-100-UPS and power shedding and 16 VLAN VIDs
*   Built-in L2 switch , 256 MAC addresses
*   MAC address limiting
*   Customer VLAN tagged (802.1p), priority tagged and untagged frames
*   ToS/DSCP to 802.1p mapping
*   IGMPv1/v2/v3 snooping and filtering
*   Ethernet UNI output shaping, and upstream scheduling
*   GPON “last gasp” power loss indication

Скачать AONT-100C.pdf
